A 2.5-inch SATA upgrade
The 100 × 70 × 7 mm enclosure fits compatible 2.5-inch SATA computer bays.
Product view
The listed finish is black. Supplied label artwork and capacity examples illustrate the design; select the capacity for your quotation.
NEWSMY · 2.5-INCH SATA SSD
NM500.
2.5-inch SATA SSD
Upgrade your everyday storage.

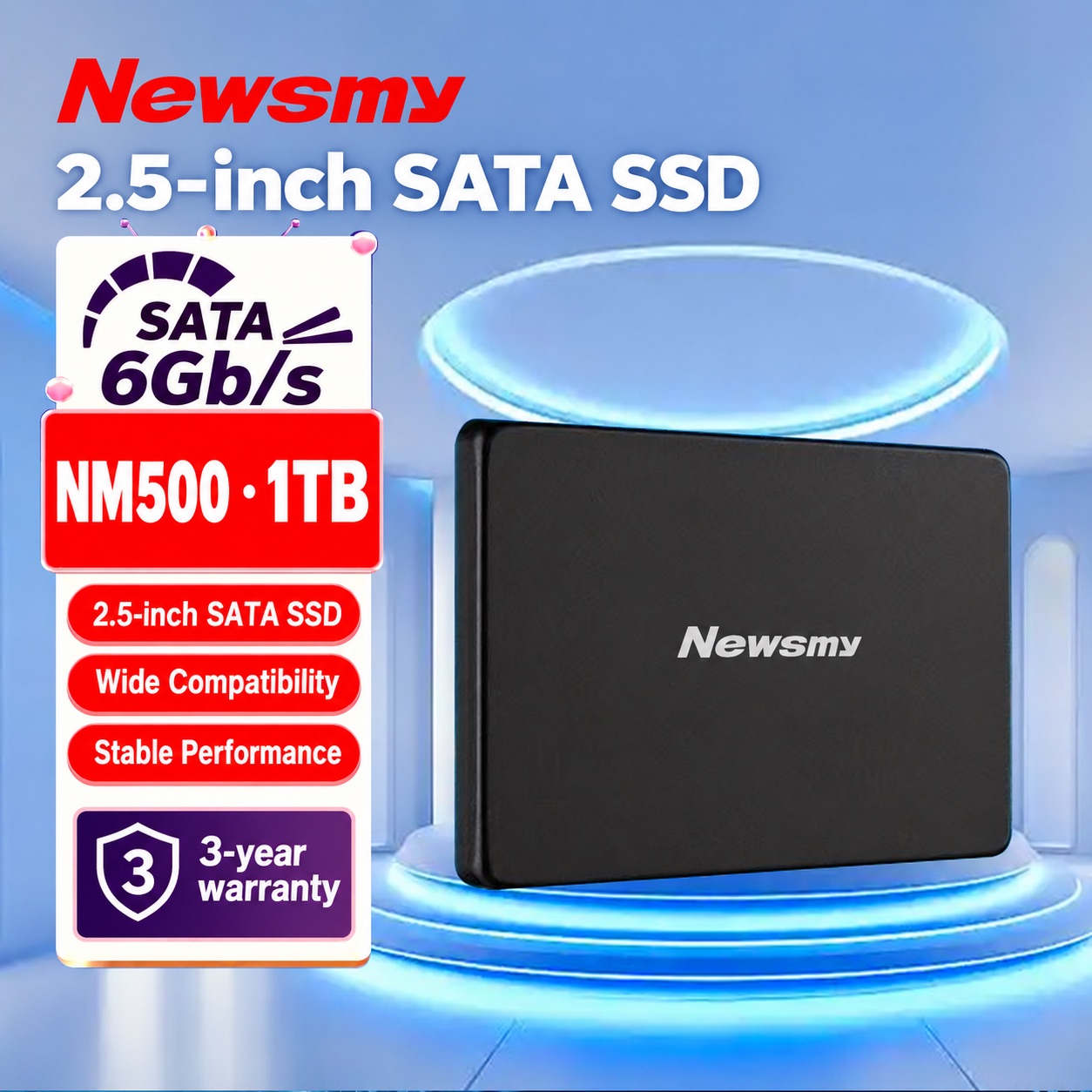

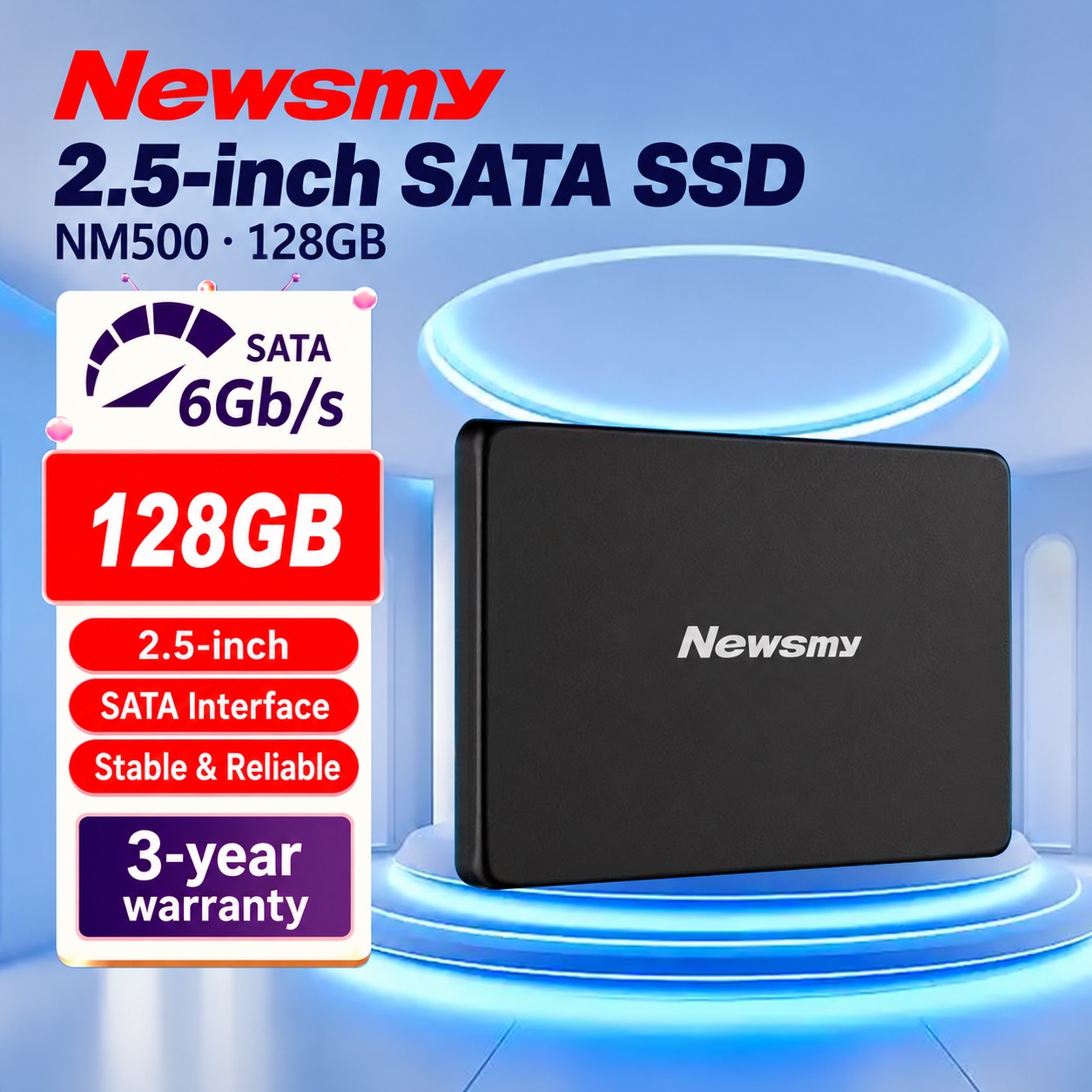

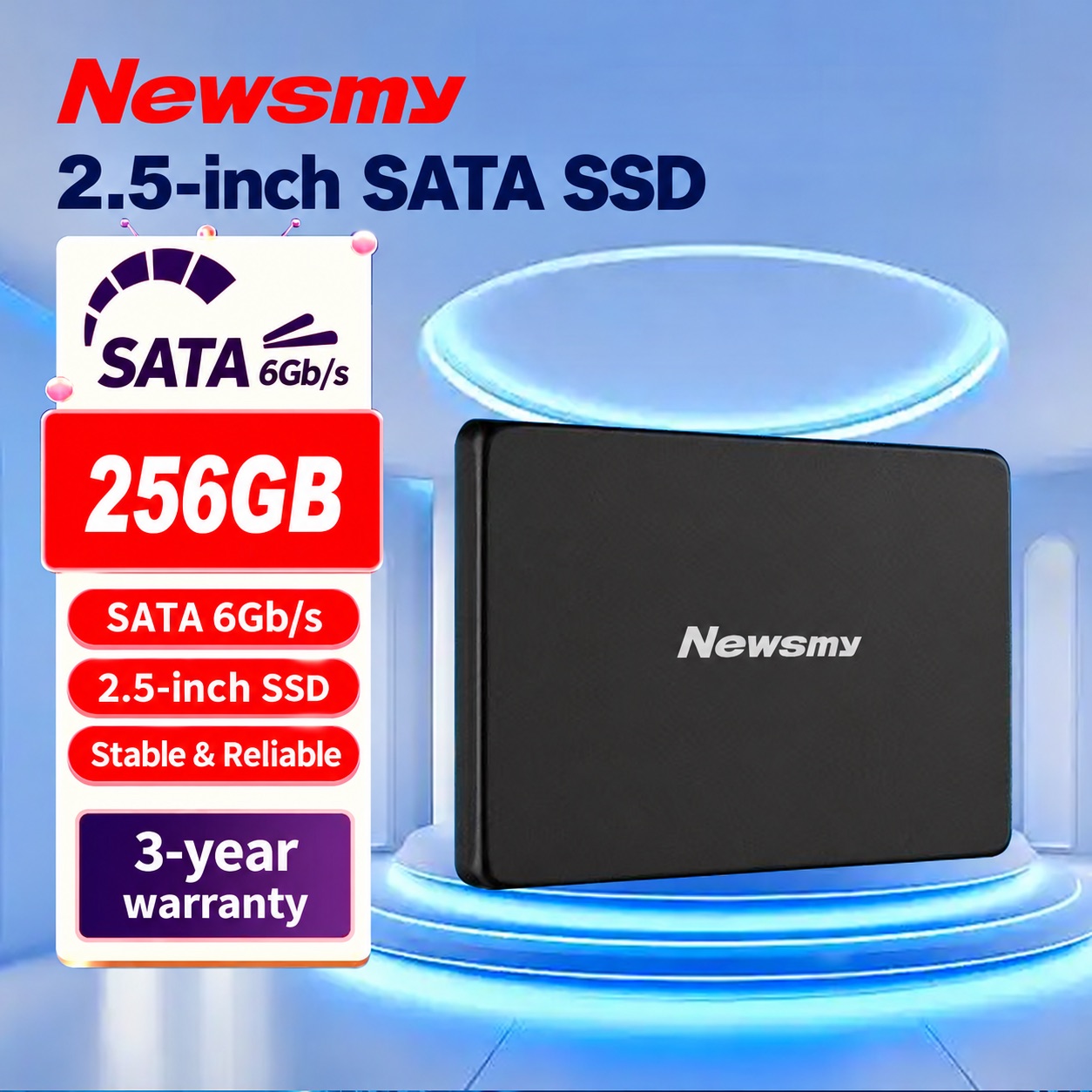

2.5-inch SATA solid-state storage for compatible desktops and laptops. Choose 128 GB, 256 GB, 512 GB or 1 TB in a 7 mm enclosure, backed by a 3-year warranty.
3-year warranty2.5-inch SATA7 mm enclosure128 GB–1 TB
Standard finish
Black
SATA 6Gb/s
Include your selected configuration, quantity and destination in your inquiry.
DESIGNED AROUND THE DETAILS
Upgrade your everyday storage.
Flash management
3D NAND, LDPC error correction and TRIM support provide storage-management features for everyday use.
Four capacities
Choose 128 GB, 256 GB, 512 GB or 1 TB. Include your computer model and preferred enclosure finish in your inquiry.
NEWSMY NM500 · PRODUCT DETAILS
Explore every detail.
Design, features and everyday connections.

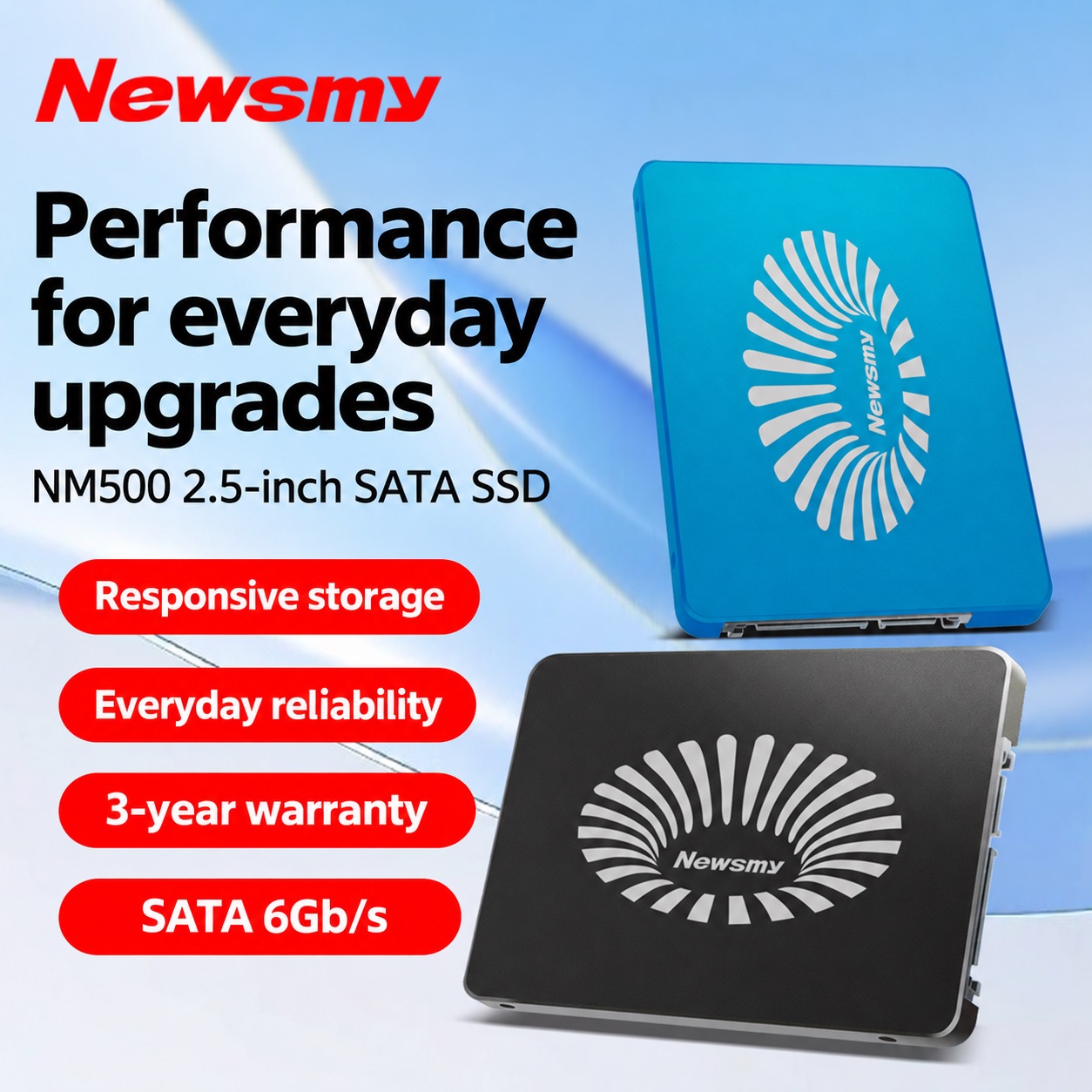

01NM500. Ready for your upgrade.

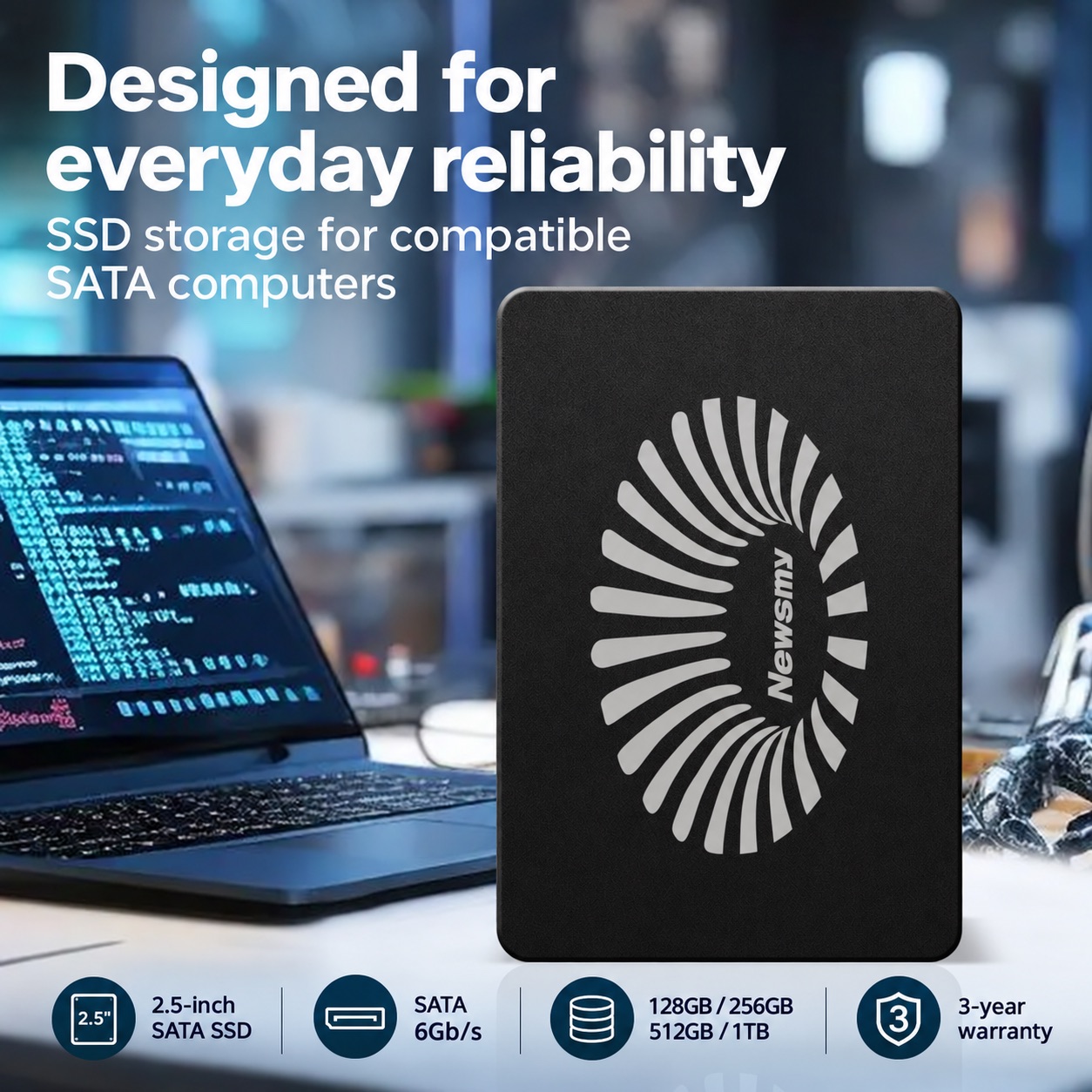

2.5-inch SATA storage with four capacity options for compatible computers.

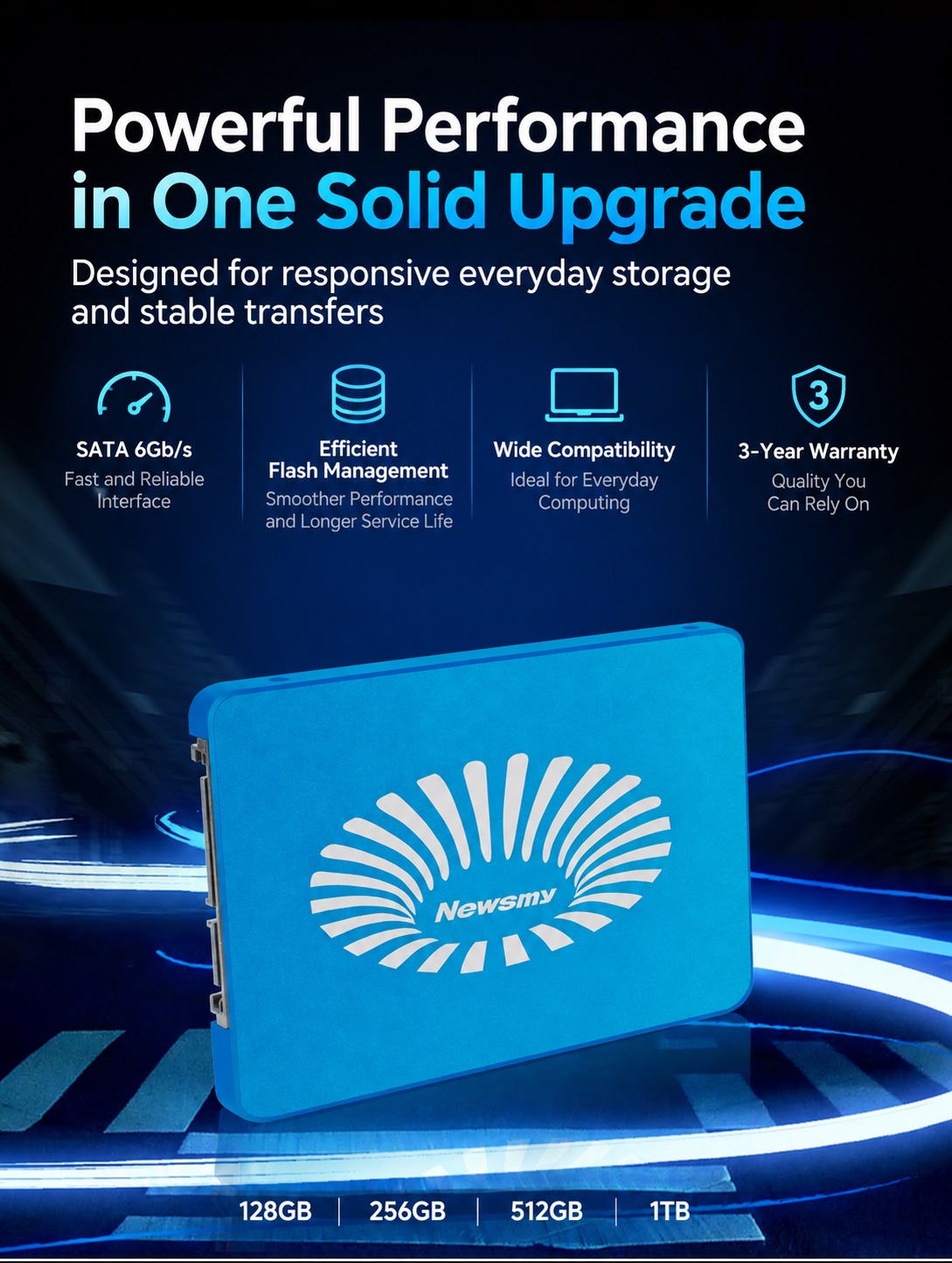

02Efficient flash management
Flash management supports responsive everyday storage and stable transfers.

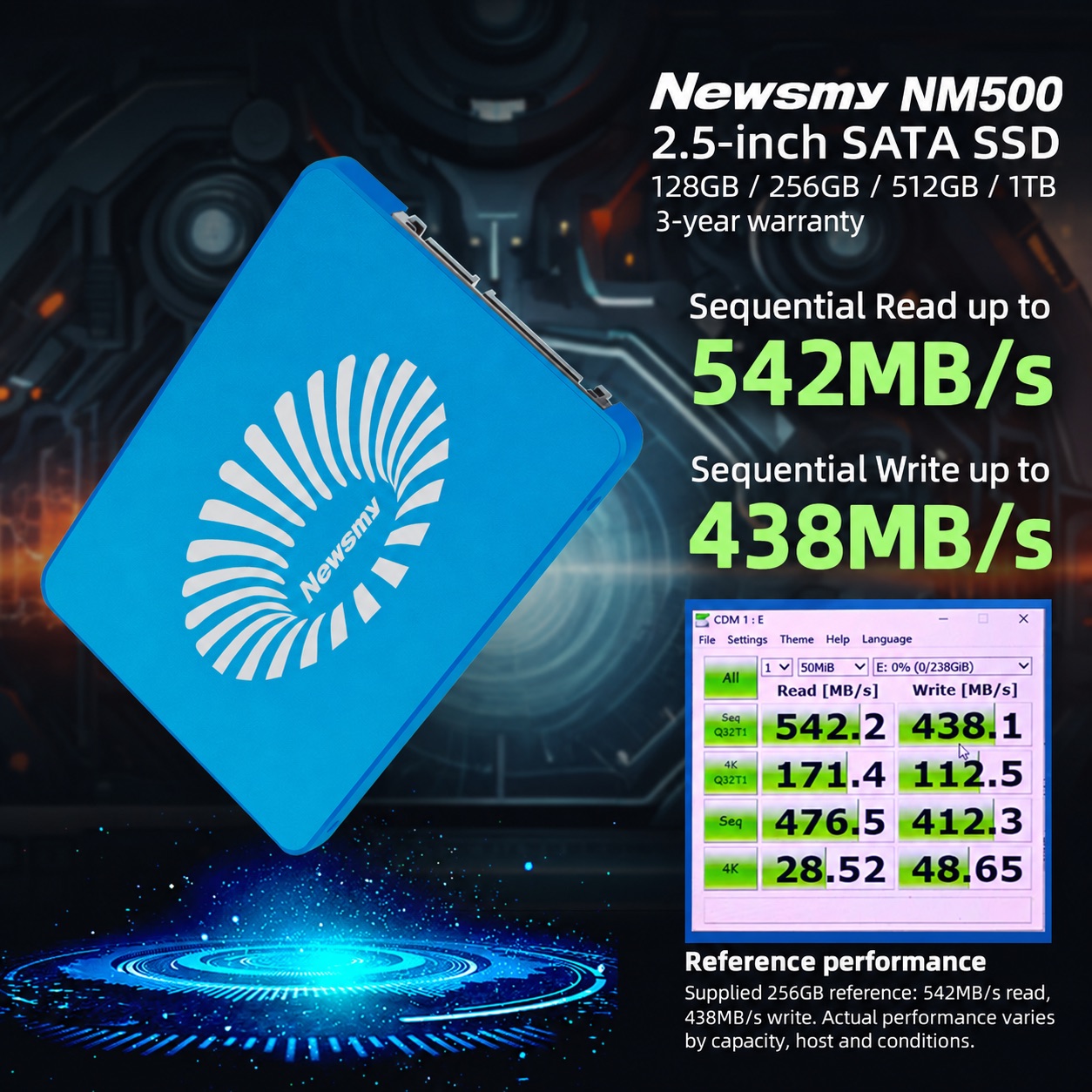

03Reference performance
The supplied 256 GB reference shows 542 MB/s read and 438 MB/s write. Actual performance varies by capacity, host and test conditions.

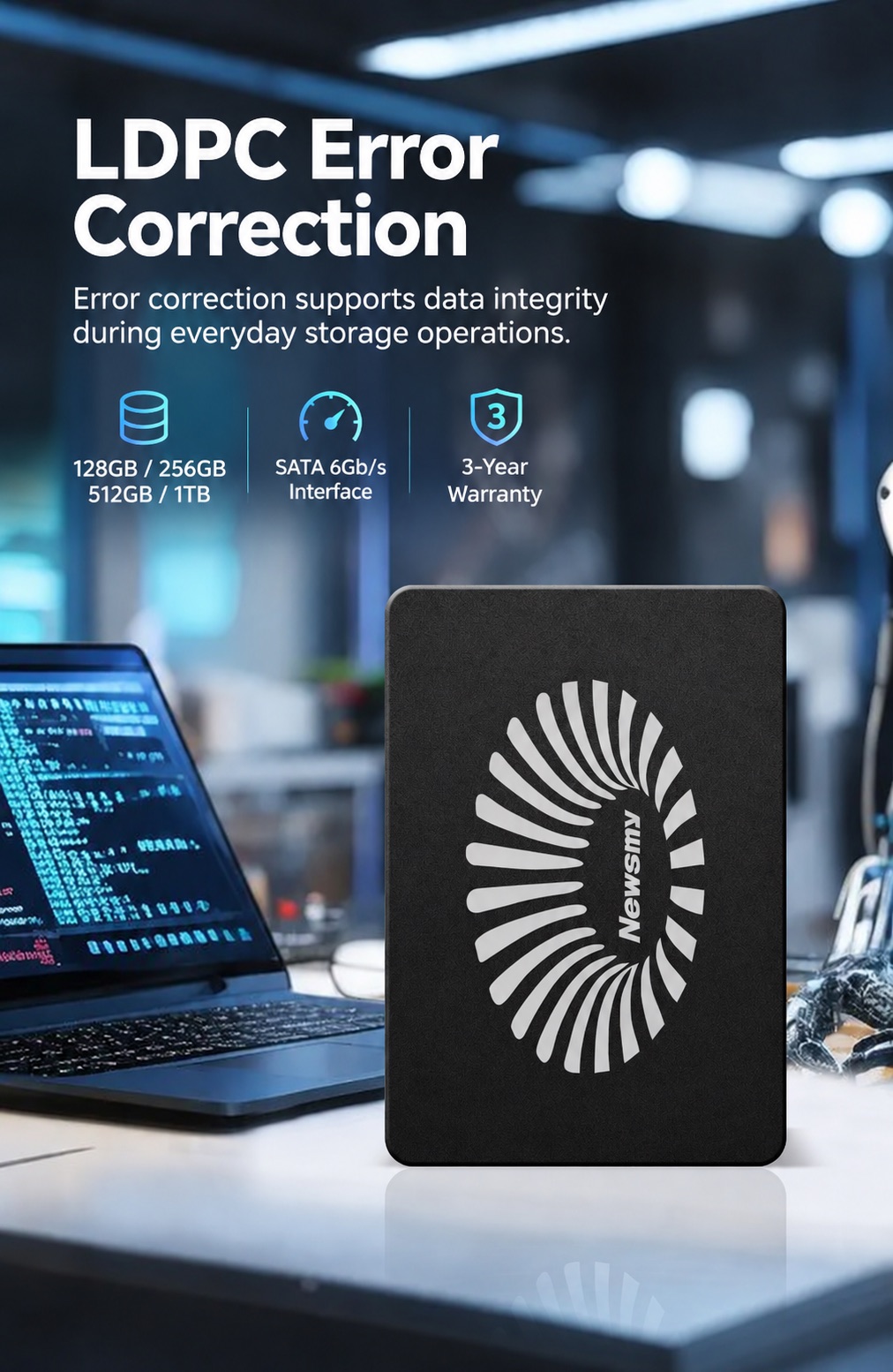

04LDPC error correction
Error correction supports data integrity during everyday storage operations.
05TRIM support
A compatible operating system can manage unused blocks to support ongoing storage performance.
3YEAR
WARRANTY
WARRANTY
CONFIDENCE THAT GOES WITH YOU
Built for your storage range.
Backed for the years ahead.
NEWSMY NM500 comes with a 3-year warranty. Our international storage team is here for product and after-sales inquiries.
Explore warranty supportTHE DETAILS
NM500 specifications.
SATA 6Gb/s is an interface signalling rate. The supplied benchmark is a 256 GB reference example. Actual performance varies by capacity, host and conditions; usable capacity is lower than the label.
| Brand | NEWSMY |
|---|---|
| Model | NM500 |
| Product type | Internal 2.5-inch SATA solid-state drive |
| Storage interface | SATA 6Gb/s |
| Capacity options | 128 GB · 256 GB · 512 GB · 1 TB |
| Dimensions | 100 × 70 × 7 mm |
| Colour | Black |
| Enclosure thickness | 7 mm |
| Weight | Approximately 54 g |

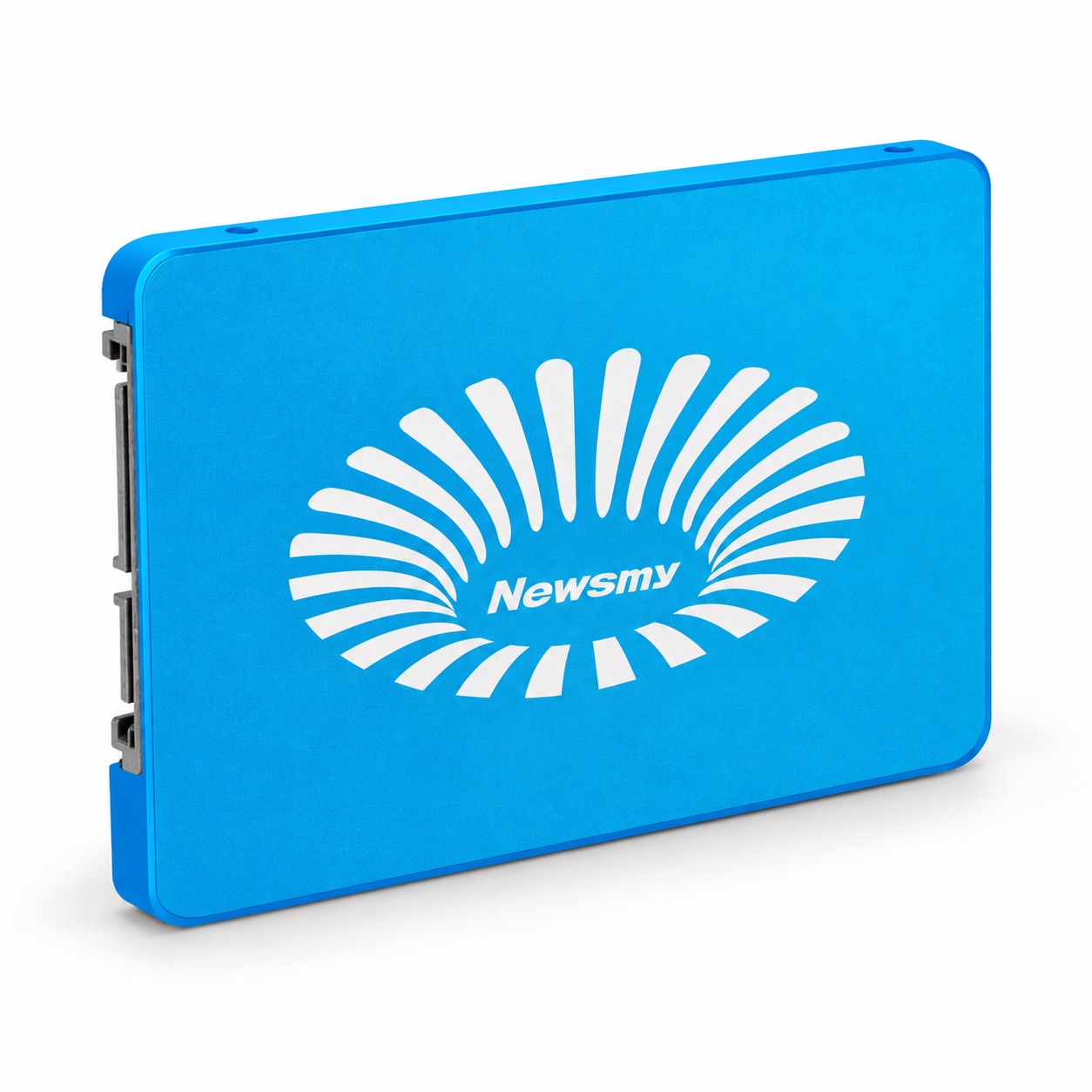

| Enclosure examples | Black / Blue — confirm finish and label style with your quotation |
| Flash | 3D NAND |
| Flash management | LDPC error correction and TRIM support |
| Supply voltage | DC 5 V |
| Operating temperature | 0°C to 70°C |
| Storage temperature | −40°C to 85°C |
| 256 GB reference read / write | 542 / 438 MB/s — supplied benchmark example |
| Host requirements | Compatible SATA connection, power and 2.5-inch mounting clearance |
| Warranty | 3-year warranty |
MODEL-SPECIFIC DOCUMENTATION
NM500 inspection report.
Original report WT253201878, issued 11 November 2025 by Shenzhen Academy of Metrology & Quality Inspection. The report identifies one submitted NM500 128 GB sample. It covers the listed basic functions, read / write checks and usable capacity under its stated test conditions.
The results apply to the tested sample. This is separate from the 256 GB reference benchmark shown above and does not establish certification or guaranteed performance for every capacity or model.
Read the complete original report (PDF, Chinese) ↗Request documentation for your configuration →BEFORE YOU ORDER
A few useful answers.
Which capacities are available?
NM500 is available in 128 GB, 256 GB, 512 GB and 1 TB.
Will NM500 fit my computer?
Check for a compatible SATA connector, power connection and a 2.5-inch bay that accepts a 7 mm drive. Some computers require a mounting adapter or bracket.
Is this the same as an M.2 NVMe SSD?
NM500 uses a 2.5-inch SATA enclosure and SATA interface. It is physically different from an M.2 NVMe drive.
Does every capacity achieve the displayed benchmark speeds?
No. The supplied 256 GB reference benchmark reports 542 MB/s read and 438 MB/s write. Your result depends on capacity, host and test conditions.
Can I choose the enclosure finish?
The listed NM500 finish is black. Product artwork views show supplied label designs. Select your capacity and include quantity and destination in your inquiry.
Can I request a sample or wholesale quotation?
Yes. Select your NM500 configuration and request a quote or sample. The selected options are included in your inquiry. Include your estimated quantity and destination; our team will confirm availability, pricing and lead time.
What is the warranty?
NM500 comes with a 3-year warranty. For after-sales assistance, contact our storage team with your model, purchase channel and order reference.
